Friction Stir Welding Equipment
Automated friction stir welding for large structural assemblies.

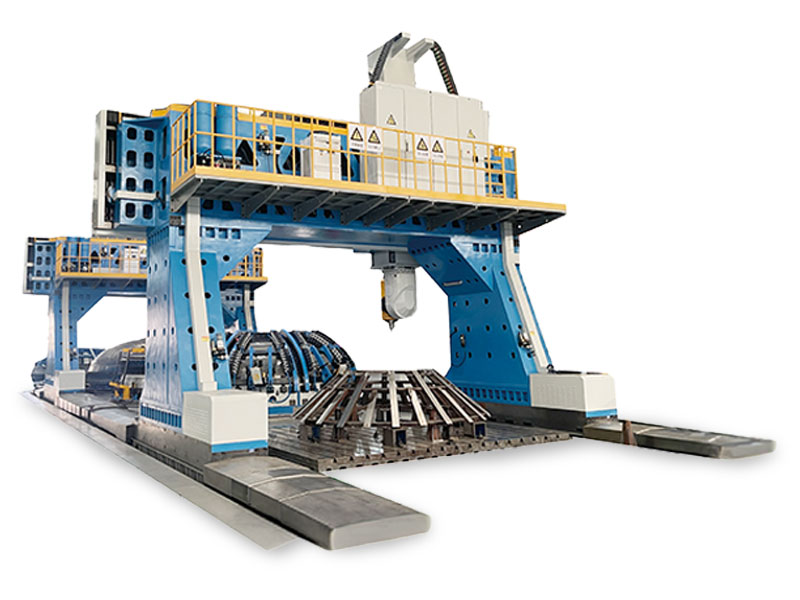

TOPNC Friction Stir Welding Equipment is designed for automated welding of large lightweight structures, tank components and demanding aerospace assemblies. The system combines mature welding processes, high-power spindle technology and 5-axis welding capability for precise and repeatable joining workflows.
Siemens and Heidenhain CNC control options.
Siemens CNC
Heidenhain CNC
Configured by Application
High-power friction stir welding for demanding structural components.
The system is built for automated friction stir welding processes where component size, weld quality and process stability are critical. It supports advanced welding strategies for large assemblies and can be integrated into specialized aerospace, space and rail production workflows.
5-Axis Friction Stir Welding
A self-developed heavy-duty 5-axis swivel head and high-power welding spindle enable complex welding paths and coordinated multi-axis welding processes.
5-Axis
Welding capability
High-power
Welding spindle
Heavy-duty
Swivel head
Multiple FSW Processes
The equipment supports mature friction stir welding processes for different component geometries, materials and assembly requirements.
Single-shoulder
Welding process
Double-shoulder
Welding process
Retractable
Welding process
Controlled Welding Process
Intelligent control functions such as constant-force control, constant-displacement control and automatic positioning help stabilize the welding process and improve repeatability.
Constant force
Process control
Constant displacement
Process control
Automatic positioning
Welding support
Automated Welding for Tank Structures
The system supports automated welding of longitudinal seams, circumferential seams and flange-hole areas on large tank and structural assemblies.
Longitudinal seams
Tank structures
Circumferential seams
Large assemblies
Flange holes
Automated welding
Automated Joining
Automated friction stir welding supports stable, repeatable and scalable joining processes for large lightweight structural components.
Advanced Process Capability
Support for multiple FSW processes gives manufacturers more flexibility when handling complex weld paths, component geometries and production requirements.
Stable Weld Quality
Constant-force and constant-displacement control help improve process stability and support consistent welding results across demanding assemblies.
Large-Structure Integration
The equipment is suitable for integration into production concepts for large aerospace, space and rail structures where automated welding and precise process control are required.
Key technical capabilities of the Friction Stir Welding Equipment.
The system is described through its core process capabilities: 5-axis friction stir welding, high-power welding spindle technology, intelligent process control and support for multiple welding strategies. Detailed project-specific specifications can be defined based on component size, material and production requirements.
| Parameter | Specification |
|---|---|
| Machine type | Friction Stir Welding Equipment |
| Process | Friction Stir Welding |
| Welding capability | 5-axis welding capability |
| Welding head | Self-developed heavy-duty 5-axis swivel head |
| Spindle concept | High-power welding spindle |
| Process experience | More than 10 years of large friction stir welding equipment manufacturing and mature process experience |
| Supported processes | Single-shoulder welding; double-shoulder welding; retractable welding; plug repair welding |
| Tooling capability | Mature welding fixture capability |
| Automated welding focus | Automated welding of tank longitudinal seams, circumferential seams and flange-hole areas |
| Control functions | Constant-force control; constant-displacement control; automatic positioning |
| Application focus | Large lightweight structures, tank components and demanding aerospace assemblies |
| Configuration | Project-specific / customized |
| Data note | Technical capability overview based on the official TOPNC product page; no model-specific numeric specification table is published there |

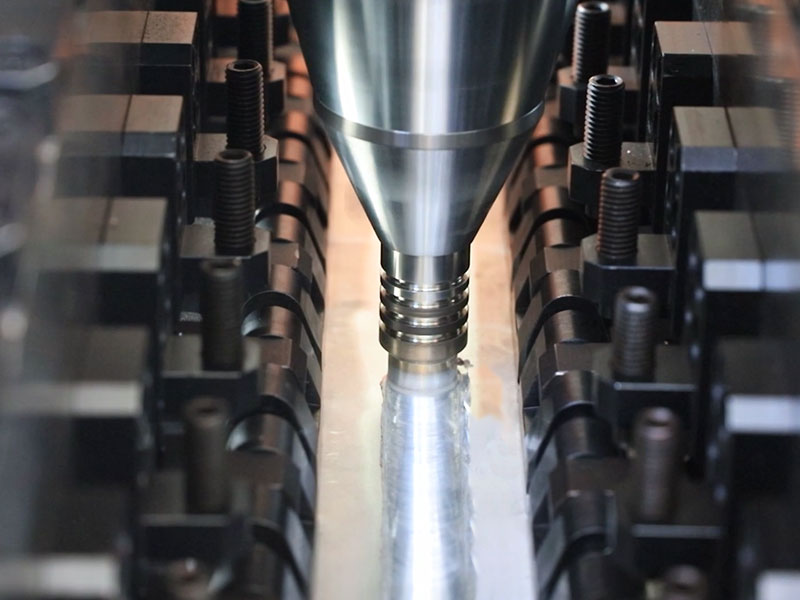

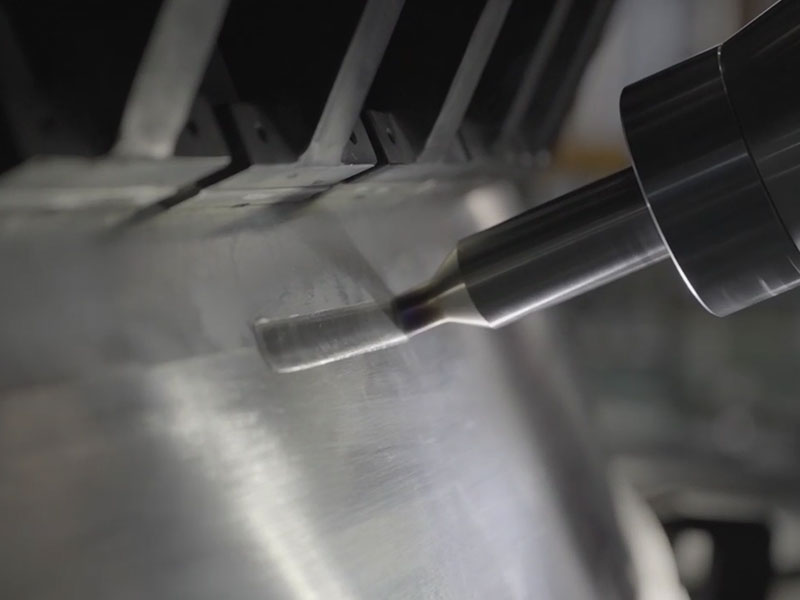

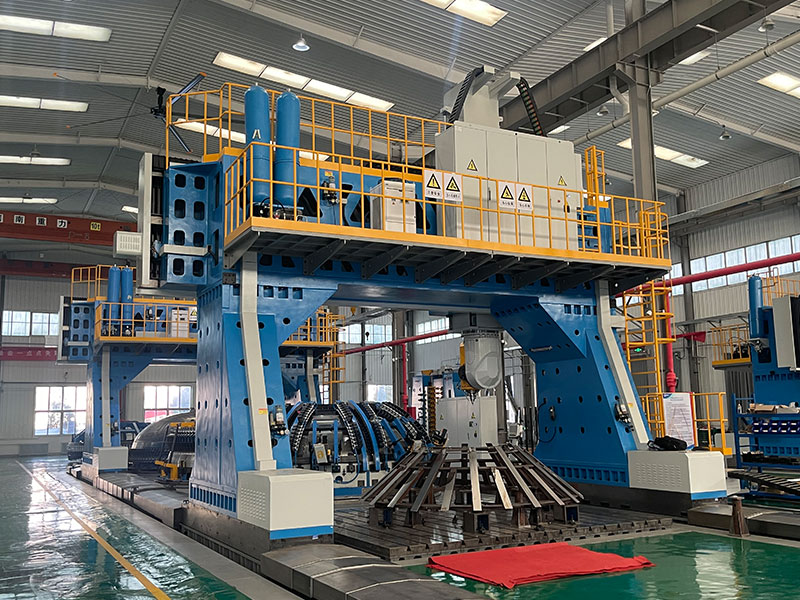

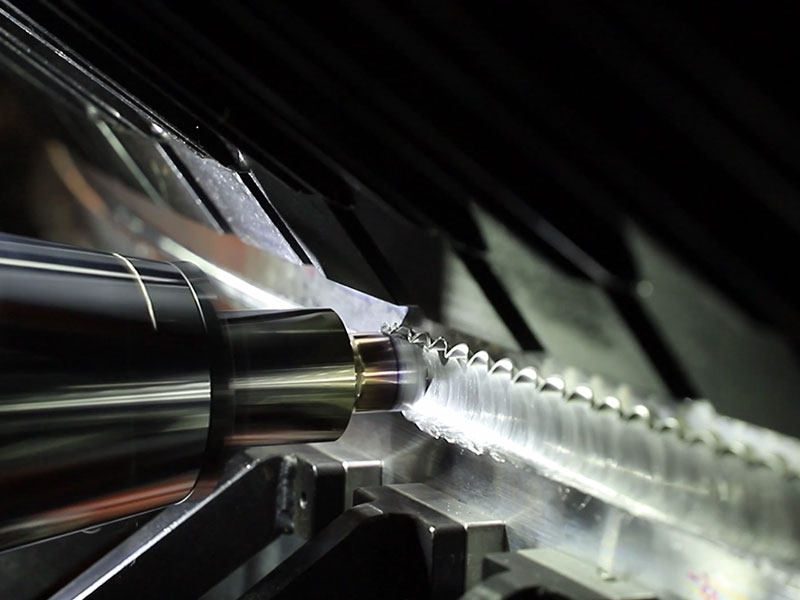

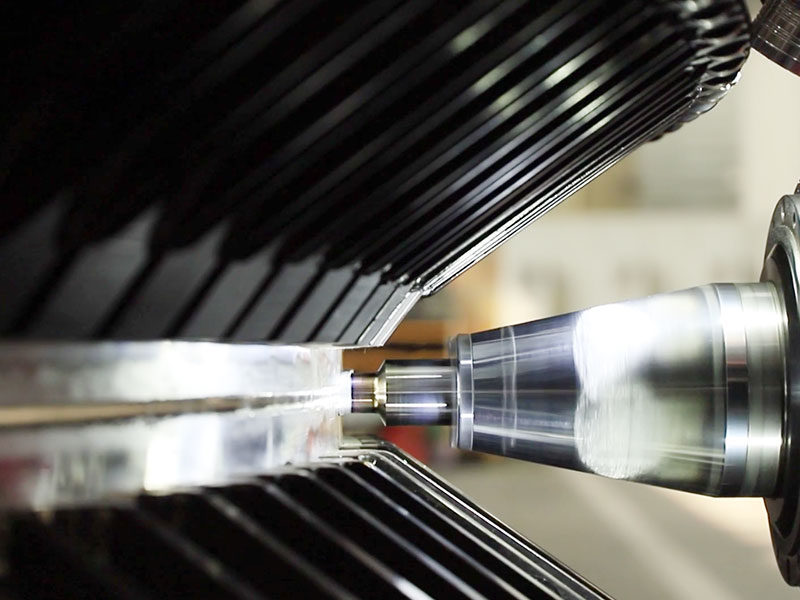

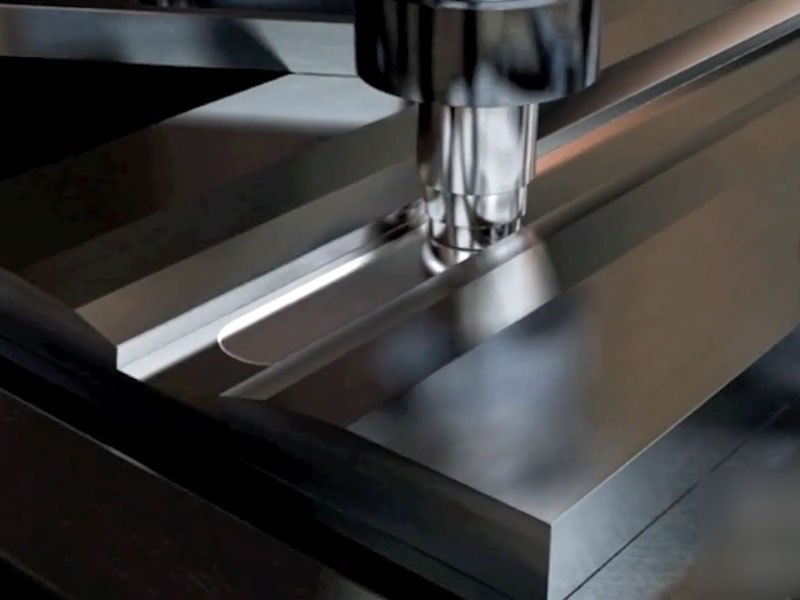

Impressions from friction stir welding equipment and assembly applications.
