Dual 5-Axis Mirror Milling
Horizontal mirror milling centers for aircraft skin production.
The Dual 5-Axis Mirror Milling series is designed for high-efficiency, high-quality machining of aircraft skins. With synchronized 5-axis milling and support heads, the system enables closed-loop thinning, wall thickness control and adaptive surface compensation.
Siemens and Heidenhain CNC control options.
Siemens CNC
Heidenhain CNC
Configured by Application
Four HMMS configurations for different aircraft skin sizes.
The HMMS series covers different working ranges for aircraft skin machining, from compact skin components to large fuselage and wing structures. Each configuration combines dual 5-axis mirror milling, real-time wall thickness control and adaptive compensation for deformed surfaces.
HMMS-3000
Dual 5-axis mirror milling configuration for smaller aircraft skin components and compact structural panels.
3000 mm
X1/X2-axis travel
2500 × 1200 mm
max. skin size
24,000 rpm
max. spindle speed
HMMS-6000
Mirror milling configuration for midsized fuselage skin sections with extended axis travel and larger skin handling capacity.
6500 mm
X1/X2-axis travel
6000 × 2500 mm
max. skin size
24 / 30 tools
Tool magazine capacity
HMMS-8000
Large-format mirror milling configuration for aircraft skins, wing and horizontal tail skin components.
8000 mm
X1/X2-axis travel
7300 × 2500 mm
max. skin size
24 / 30 tools
Tool magazine capacity
HMMS-12000
Extended working range configuration for very large aircraft skin components and long structural panels.
12500 mm
X1/X2-axis travel
12000 × 2500 mm
max. skin size
1300 mm
Z1/Z2-axis travel
High Efficiency
The system completes thinning, drilling, window cutting and edge milling in a single setup, helping reduce process steps and increase aircraft skin production output.
Closed-Loop Quality
In-process measurement, wall thickness feedback and adaptive compensation support controlled thinning, stable surface quality and repeatable machining results.
Digitalized Production
Process data, machine status and quality information can be monitored and visualized to support traceable, manageable and automated skin production.
Green Economy
Mirror milling reduces the need for chemical milling, supports aluminum chip recycling and enables a cleaner, lower-emission production environment.
Technical comparison across the HMMS series.
The table below compares the key technical data of the HMMS-3000, HMMS-6000, HMMS-8000 and HMMS-12000, including axis travel, spindle data, swivel ranges, tool magazine capacity and maximum skin size.
| Parameter | HMMS-3000 | HMMS-6000 | HMMS-8000 | HMMS-12000 |
|---|---|---|---|---|
| X1/X2-axis travel | 3000 mm | 6500 mm | 8000 mm | 12500 mm |
| Y1/Y2-axis travel | 1700 mm | 3200 mm | 3200 mm | 3200 mm |
| Z1/Z2-axis travel | 600 mm | 1000 mm | 1000 mm | 1300 mm |
| W1/W2-axis travel | 40 mm | 40 mm | 40 mm | 40 mm |
| A1/A2-axis travel | ±65° / ±65° | ±65° / ±65° | ±65° / ±65° | ±65° / ±65° |
| B1/B2-axis travel | ±65° / ±65° | ±65° / ±65° | ±65° / ±65° | ±65° / ±65° |
| Spindle rated torque | 26 Nm | 26 Nm | 26 Nm | 26 Nm |
| Spindle rated power | 20 kW | 20 kW | 20 kW | 20 kW |
| Spindle interface | HSK-A63 | HSK-A63 | HSK-A63 | HSK-A63 |
| Max. spindle speed | 24000 rpm | 24000 rpm | 24000 rpm | 24000 rpm |
| Max. skin size | 2500 × 1200 mm | 6000 × 2500 mm | 7300 × 2500 mm | 12000 × 2500 mm |
| Tool magazine capacity (standard) | 24 | 24 | 24 | 24 |
| Tool magazine capacity (optional) | — | 30 | 30 | 30 |
Full Dual 5-Axis Mirror Milling brochure.
Download the official brochure with detailed information about aircraft skin mirror milling, dual 5-axis machining, wall thickness control, production concepts and technical configuration.
Impressions from dual 5-axis mirror milling in aircraft skin production.

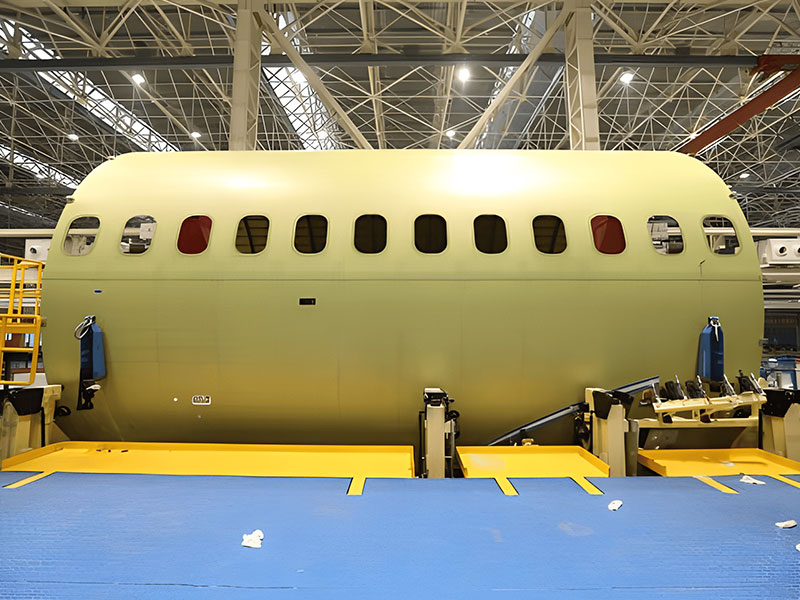

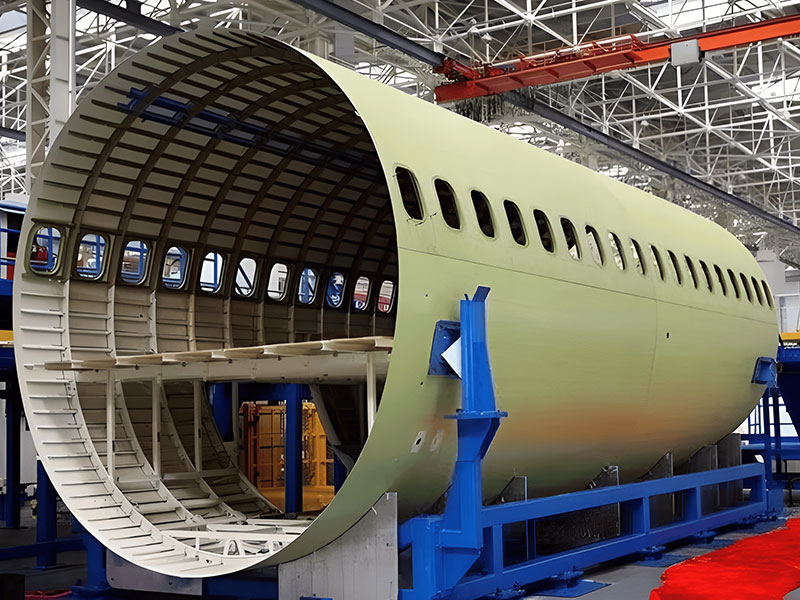

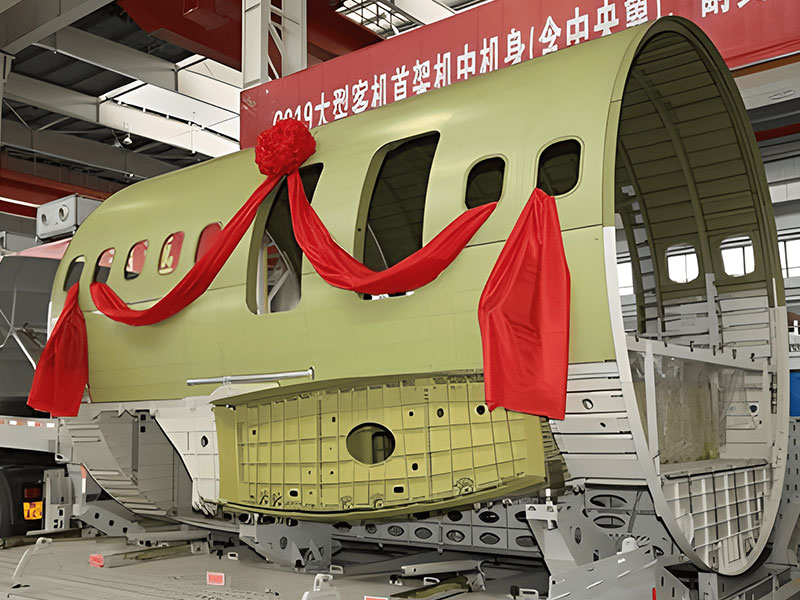

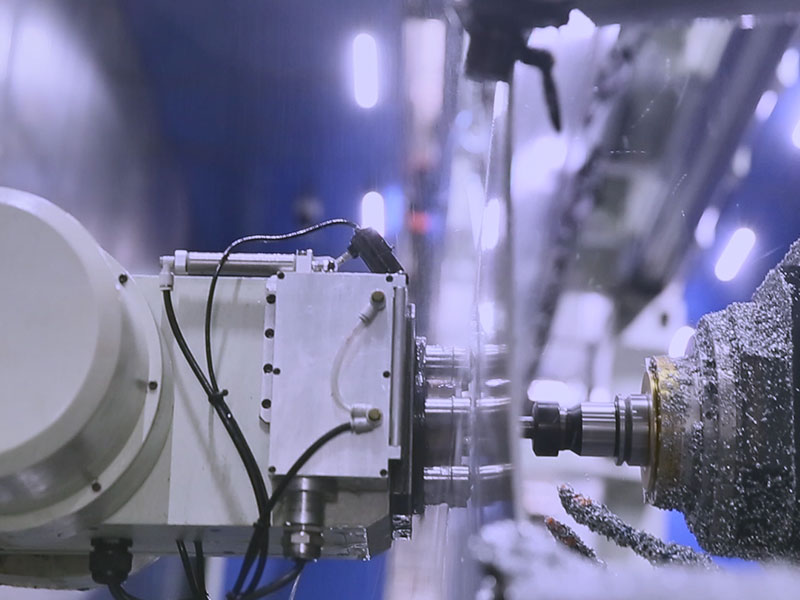

This gallery presents a mixed visual selection from the mirror milling series, including machine views, aircraft skin machining, fixture concepts, support-side details and production-related impressions. The images are not separated by model type and provide a broader impression of the system as a whole.
