Kunpeng Family
HMC Series
Universal 5-axis machining centers for stable, high-precision manufacturing.
The HMC Series combines a stable swing-head concept, rotary table machining and high-precision 5-axis performance in one universal machining platform. Designed for dynamic machining of complex industrial components, the series supports stable processing, reliable accuracy and efficient production in demanding manufacturing environments.

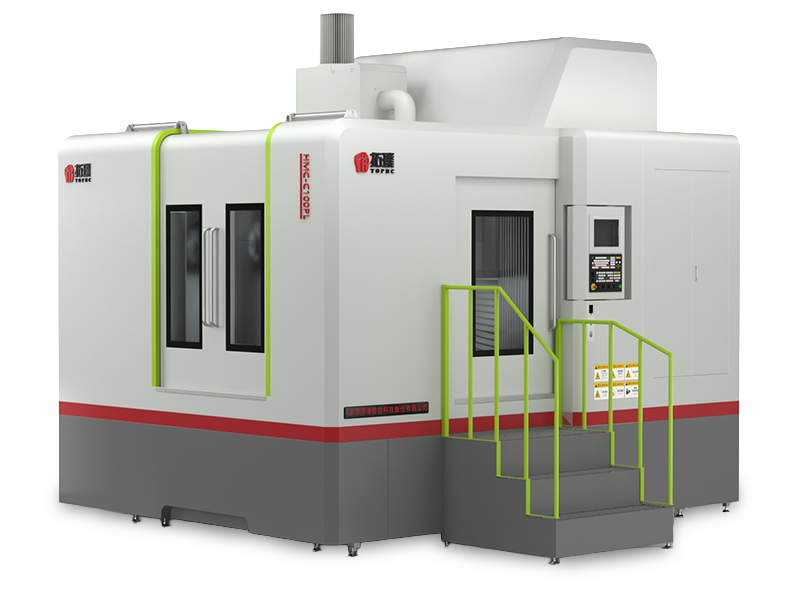

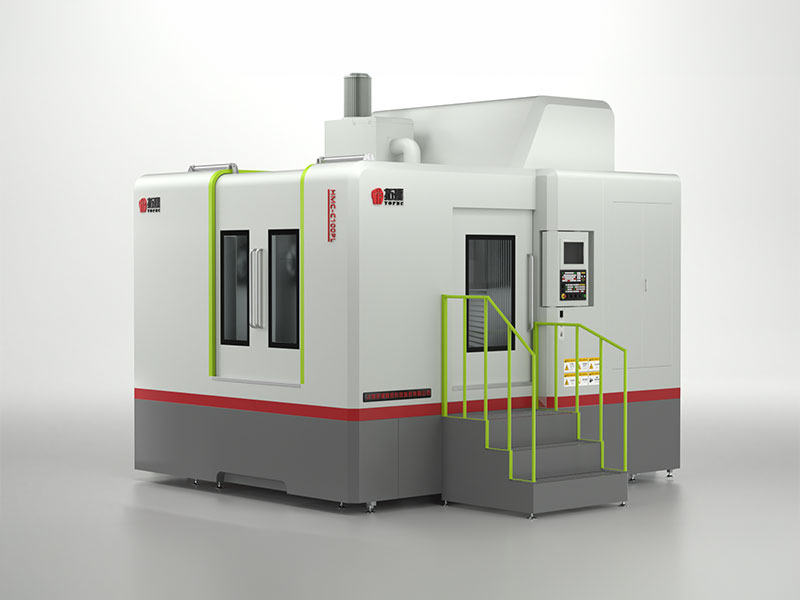

HMC-C100PL
HMC-C100PT
Control Systems
Siemens and Heidenhain CNC control options.
TOPNC machines can be configured with Siemens or Heidenhain control systems, depending on machine type, application requirements and customer production standards.
01
Siemens CNC
Reliable control technology for stable operation and demanding production environments.
02
Heidenhain CNC
Precision-focused control for complex milling, contours and high-accuracy workflows.
03
Configured by Application
Control system selection depends on machine type, process and customer requirements.
Model Range
Two HMC configurations for universal 5-axis machining.
The HMC-Series includes two universal 5-axis configurations with identical axis travel and table size, but different spindle speed, table load and machine layout. This allows users to select the right configuration according to workpiece weight, machining strategy and production requirements.
High-speed configuration
HMC-C100PL
Universal 5-axis machining center with high-speed spindle performance for precise and dynamic machining of complex components.
1200 / 1050 / 1250 mm
X/Y/Z-axis travel
24,000 rpm
Spindle speed
1500 kg
Table load
High-load configuration
HMC-C100PT
Universal 5-axis machining center with increased table load for heavier workpieces and stable machining of demanding industrial components.
1200 / 1050 / 1250 mm
X/Y/Z-axis travel
2000 kg
Table load
40 pockets
Tool magazine
01
Universal 5-Axis Machining

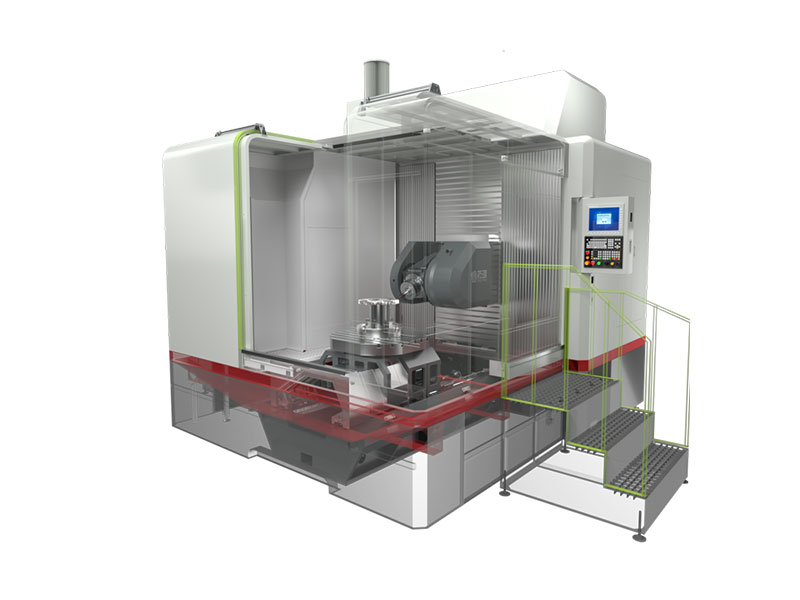

The HMC-C100P Series combines swing-head machining and rotary table capability for flexible 5-axis processing of complex workpiece geometries.
02
Stable Processing
The machine concept is designed for stable processing performance and reliable machining accuracy during dynamic component machining.
03
High-Precision Platform
Large axis travel, a 1000 × 1000 mm table and precise 5-axis motion support demanding manufacturing tasks with consistent machining quality.
04
Broad Applications
The HMC-C100P Series is suitable for aerospace, automotive, machinery manufacturing and medical device applications.
Technical Data
Technical comparison across the HMC-Series.
The table below compares the key technical data of the HMC-C100PL and HMC-C100PT. It provides a clear basis for evaluating the right configuration according to spindle speed, table load, machine size and production requirements.
| Parameter | HMC-C100PL | HMC-C100PT |
|---|---|---|
| X/Y/Z-axis travel | 1200 / 1050 / 1250 mm | 1200 / 1050 / 1250 mm |
| Table size | 1000 × 1000 mm | 1000 × 1000 mm |
| Table load | 1500 kg | 2000 kg |
| Spindle speed | 24000 rpm | 8000 rpm |
| Tool magazine capacity | 40 pockets | 40 pockets |
| Weight | 19 t | 22 t |
| Machine size | 4100 × 5200 × 4100 mm | 4600 × 4000 × 4100 mm |
Photo Gallery
Impressions from the HMC-Series in different machining and product contexts.
This gallery presents a mixed visual selection from the HMC-C100P Series, including machine views, machining details, component examples and application-related impressions. The images are not separated by model type and provide a broader impression of the series as a whole.
Kunpeng Family
Related machines in this family.
The Kunpeng Family includes additional machine concepts for mill-turn machining, horizontal machining, vertical machining and advanced 5-axis applications. These machines support different production strategies within high-precision industrial manufacturing.
HMT-i Series
5-Axis Milling and Turning Machining Center
Integrated mill-turn machining platform for complex rotational parts, precision components and complete machining processes.
TP600 Series
5-Axis Horizontal Machining Center
Horizontal machining center series for stable, efficient and precise machining of complex industrial components.
TV-C Series
5-Axis Precision Vertical Machining Center
Compact precision vertical five-axis machining for molds, medical components, optical parts, humanoid robot components and complex curved surfaces.
VMC-C Series
5-Axis Vertical Machining Center
Vertical five-axis machining center focused on precision, efficiency and long-term stability for aerospace, automotive, blower and mold applications.
Talk to TOPNC
Need the right HMC-C100P configuration?
Talk to TOPNC about workpiece size, table load, spindle requirements, machining accuracy and production workflow. Based on your requirements, we can help identify the right HMC-C100P configuration for your manufacturing environment.
