TV-C Series
5-Axis Precision Vertical Machining Centers for compact, high-speed and high-precision machining.
The TV-C Series combines compact machine design, high-speed 5-axis machining and micron-level precision in one vertical machining platform. Designed for precision molds, medical components, optical parts, humanoid robot components and complex curved geometries, the series supports efficient roughing and finishing in one integrated process.
TV400C
TV260C
Control Systems

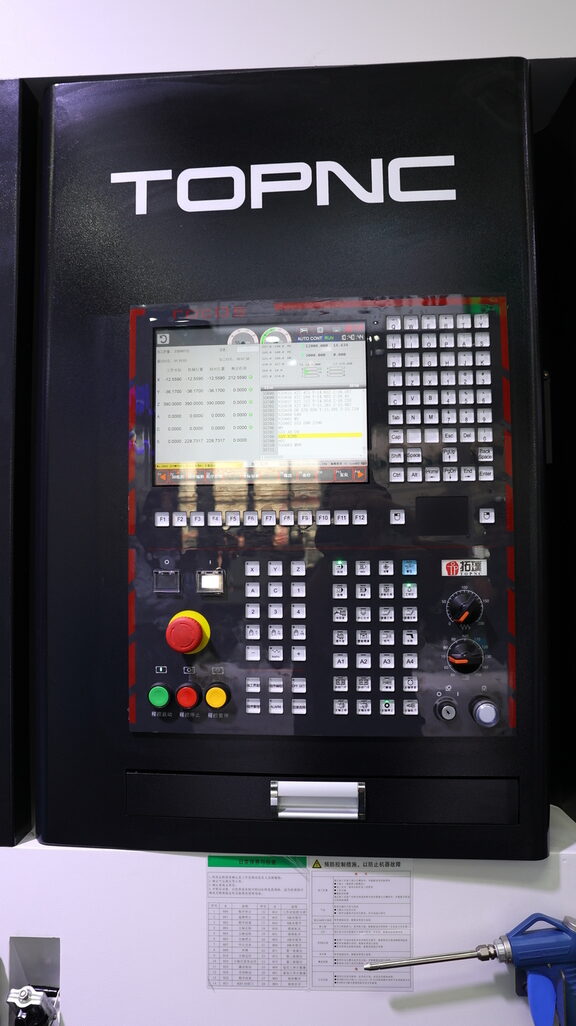

Siemens and Heidenhain CNC control options.
TOPNC machines can be configured with Siemens or Heidenhain control systems, depending on machine type, application requirements and customer production standards.
01
Siemens CNC
Reliable control technology for stable operation and demanding production environments.
02
Heidenhain CNC
Precision-focused control for complex milling, contours and high-accuracy workflows.
03
Configured by Application
Control system selection depends on machine type, process and customer requirements.
Model Range
Two TV-C configurations for compact high-precision 5-axis machining.
The TV-C Series includes two precision vertical 5-axis configurations for different workpiece sizes and machining requirements. Both models are designed for high-speed machining, stable precision and efficient processing of complex components with demanding surface and dimensional requirements.
Midsized configuration

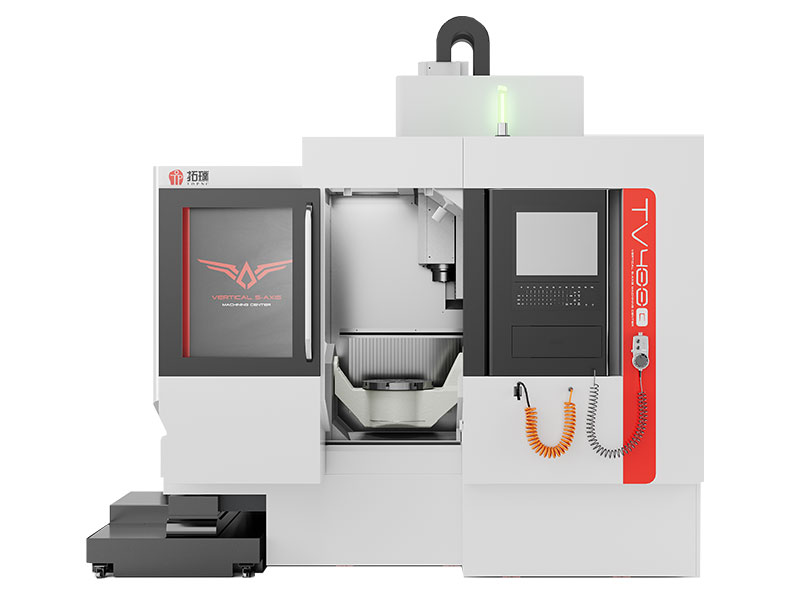

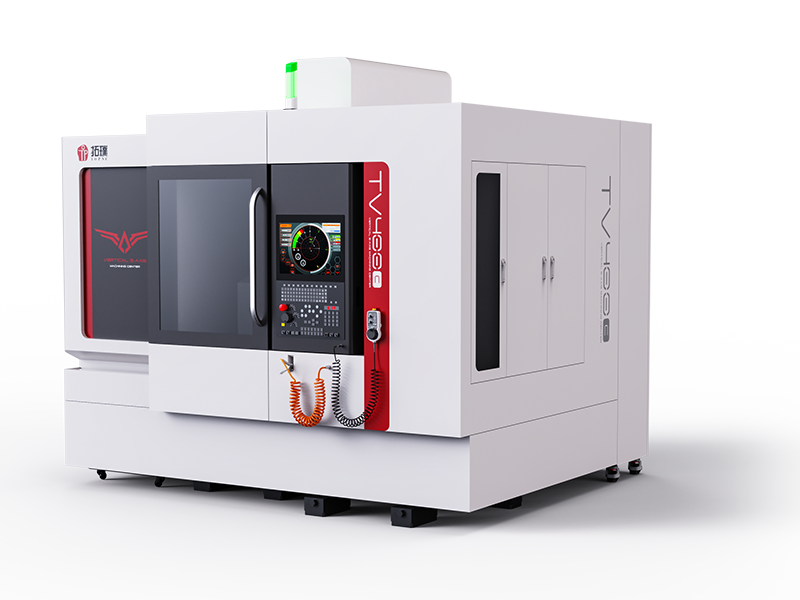

TV400C
Precision-grade midsized 5-axis high-speed machining center for efficient roughing and finishing of mechanical parts, molds and complex structural components.
Ø400 mm
Table size
Ø500 × 300 mm
Max. set-up range
20,000 rpm
Spindle speed
Compact configuration
TV260C
Precision-grade small-sized 5-axis high-speed machining center for precision molds, medical components, optical parts and humanoid robot components.
Ø260 mm
Table size
Ø260 × 270 mm
Max. set-up range
30,000 rpm
Spindle speed
01
High Precision
The TV-C Series is designed for micron-level machining accuracy, high surface quality and reliable 5-axis RTCP performance for complex precision components.
02
High Efficiency
High-speed spindle performance, fast linear-axis movement and integrated roughing and finishing help increase productivity without sacrificing precision.
03
High Stability

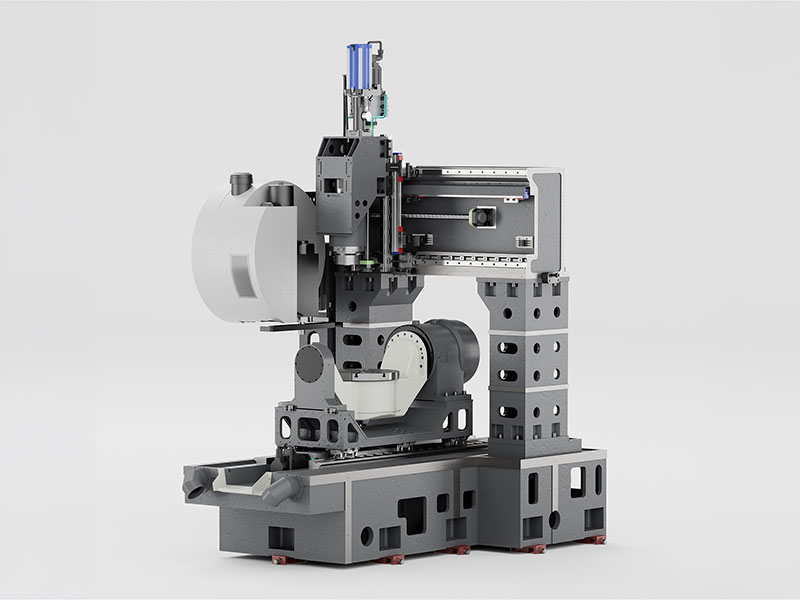

A high-rigidity machine structure, thermal control concept and direct-link drive technology support long-lasting precision during continuous machining.
04
Compact Capability
The compact vertical 5-axis platform supports demanding applications in molds, medical technology, optical components, robotics and high-precision manufacturing.
Technical Data
Technical comparison across the TV-C Series.
The table below compares the key technical data of the TV400C and TV260C. It provides a clear basis for evaluating the right configuration according to working area, spindle performance, rotary table concept, tool capacity and machine size.
| Parameter | TV400C | TV260C |
|---|---|---|
| Positioning | Precision-grade midsized 5-axis high-speed machining center | Precision-grade small-sized 5-axis high-speed machining center |
| X/Y/Z-axis travel | 450 × 680 × 400 mm | 280 × 500 × 300 mm |
| Max. set-up range | Ø500 × 300 mm | Ø260 × 270 mm |
| C-axis rotation speed | 200 rpm | 200 rpm |
| Table size | Ø400 mm | Ø260 mm |
| Max. table load | 150 kg | 50 kg |
| A-axis swivel range | +120° / -120° | +120° / -120° |
| A-axis rotation speed | 100 rpm | 100 rpm |
| Spindle max. speed | 20,000 rpm | 30,000 rpm |
| Tool holder | HSK-A63 | HSK-E40 |
| Spindle power (40% / 100% DC) | 20 / 30 kW | 8.5 / 12.75 kW |
| Spindle torque (40% / 100% DC) | 30.7 / 46 Nm | 8.1 / 12.15 Nm |
| Spindle taper runout | 1 μm | 1 μm |
| Spindle face runout | 1 μm | 1 μm |
| Runout at 10 mm on reference mandrel | 2 μm | 2 μm |
| Runout on reference mandrel | 4 μm at 250 mm | 3 μm at 200 mm |
| Tool magazine type | Disk standard / chain optional | Disk standard |
| Tool magazine capacity | 30 tools / optional 40 tools | 32 tools |
| Max. tool length | 250 mm | 200 mm |
| Max. tool diameter with adjacent tool | 75 mm | 60 mm |
| Max. tool diameter without adjacent tool | 150 mm | 120 mm |
| Max. tool weight | 8 kg | 6 kg |
| Feed rate / rapid traverse | 36 m/min | 36 m/min |
| Acceleration | 8 m/s² | 8 m/s² |

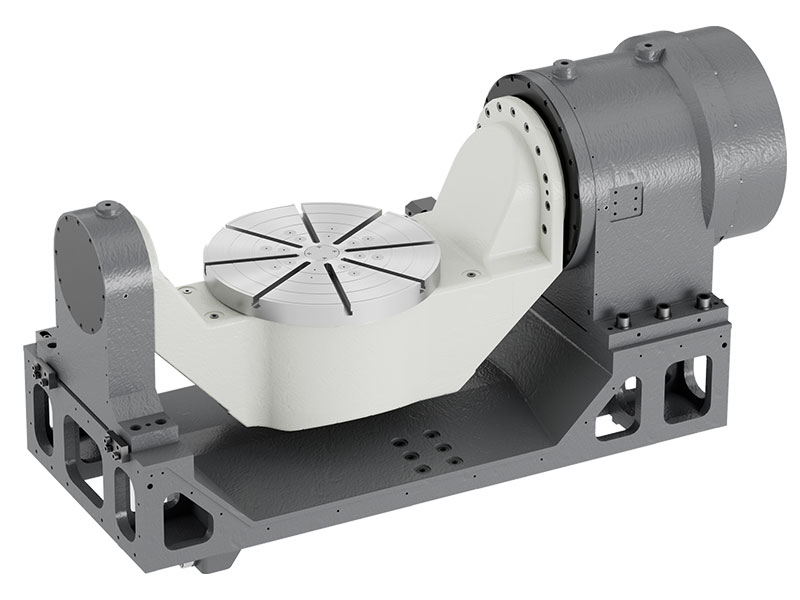

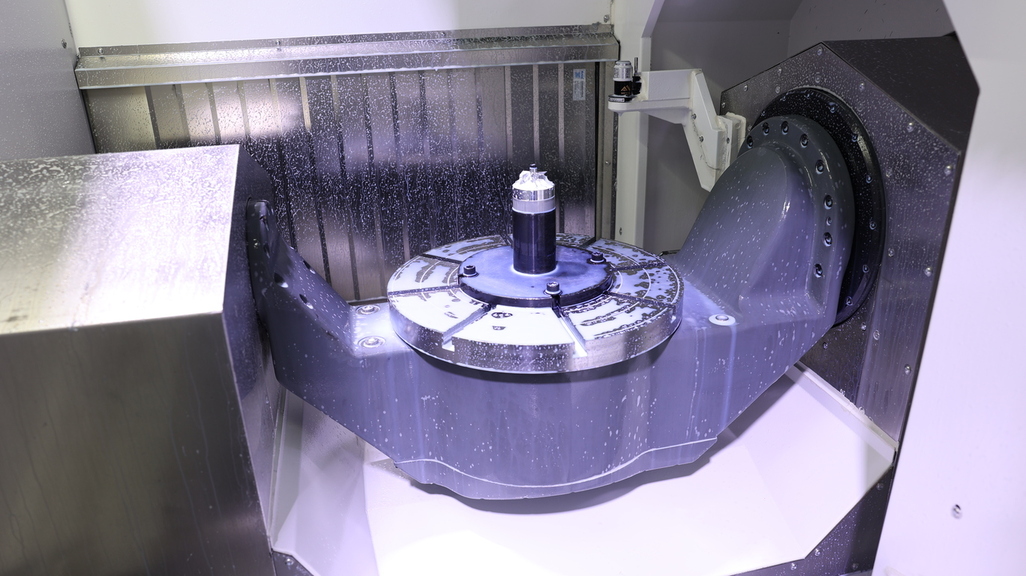

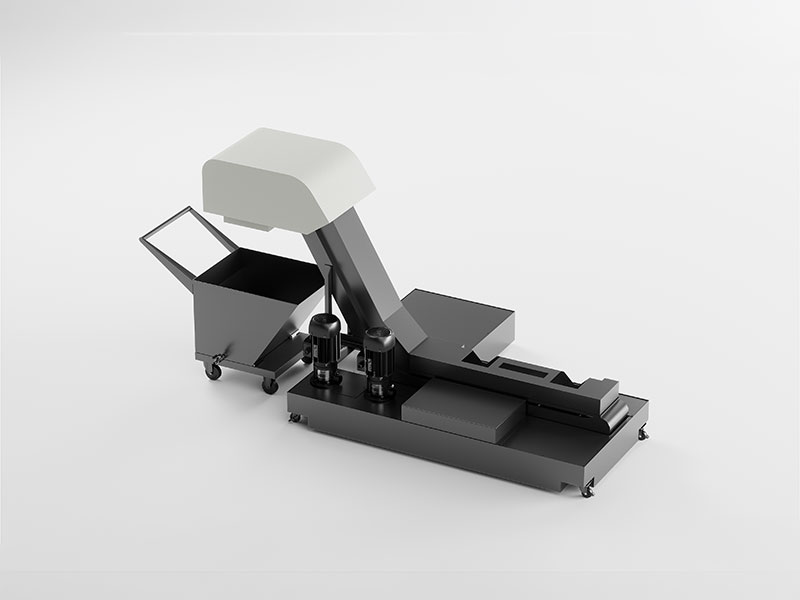

| Direct-drive trunnion concept | TV400C-DD direct-drive dual-arm trunnion | TV260C-DD direct-drive single-arm trunnion |
| Trunnion support | Dual support / single drive | Single support for A-axis |
| Rotary axis drive | DD direct-drive motor | DD direct-drive motor |
| Rotary A/C-axis speed | 100 / 200 rpm | 100 / 200 rpm |
| A-axis torque (S1 / S6) | 782 / 1540 Nm | 133 / 286 Nm |
| C-axis torque (S1 / S6) | 249 / 498 Nm | 60 / 110 Nm |
| A/C-axis clamping torque | 1680 / 840 Nm | 840 / 210 Nm |
| Rotary axis cooling | Water cooling | Water cooling |
| Fix-position clamping | Pneumatic clamp | Pneumatic clamp |
| CNC control options | Siemens / HEIDENHAIN | Siemens / HEIDENHAIN |
| Dimension including chip conveyor | 2875 × 2667 × 2920 mm | 2700 × 2000 × 2500 mm |
| Machine weight | Approx. 9 t | Approx. 6 t |
Download Brochure
Full TV-C Series brochure.
Download the official TV-C Series brochure with detailed technical data, machine concepts, configuration information and application insights for the precision vertical 5-axis machining center series.
Photo Gallery
Impressions from the TV-C Series in different machining and product contexts.

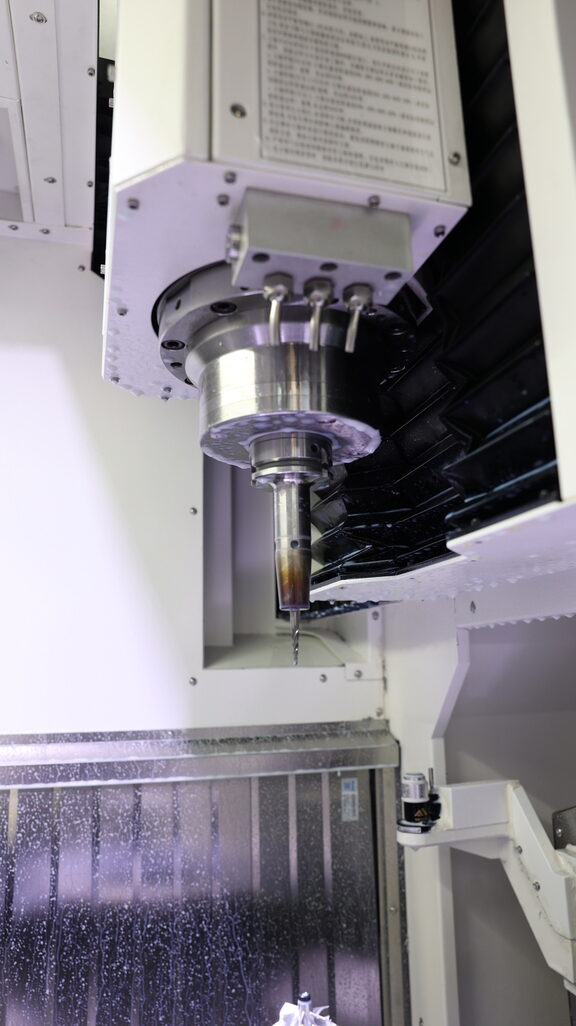

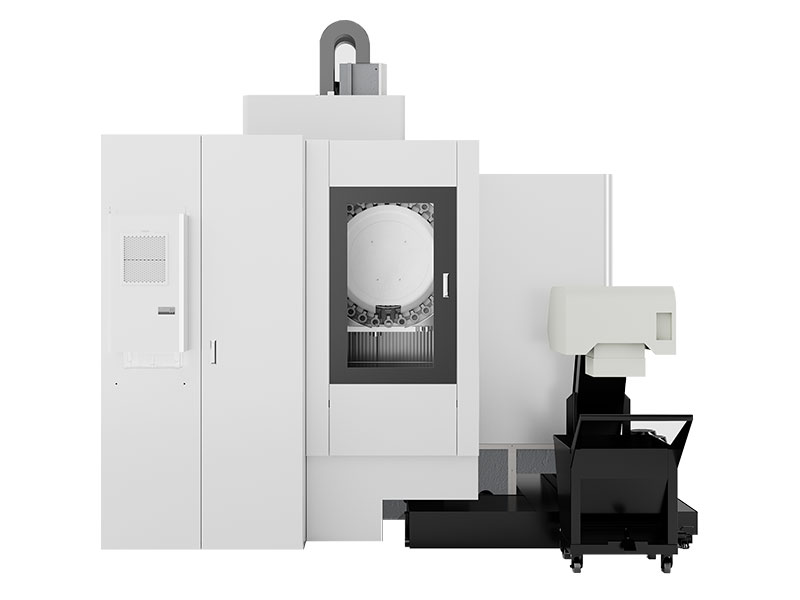

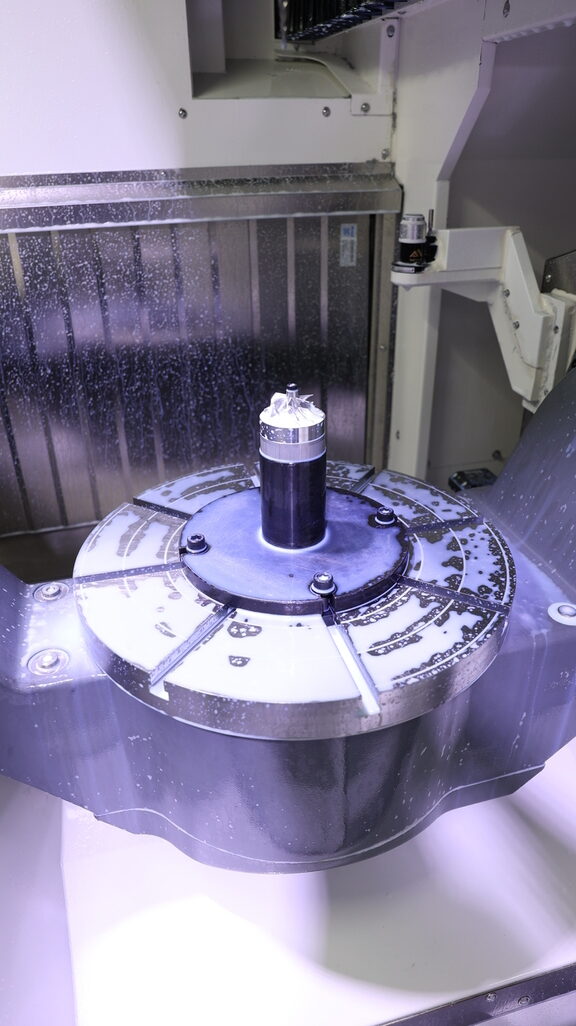

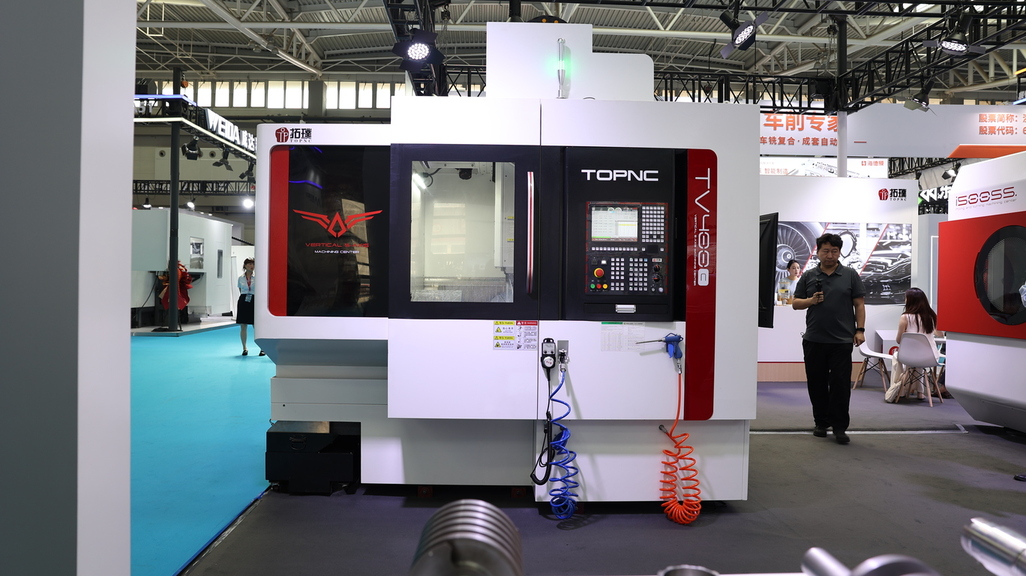

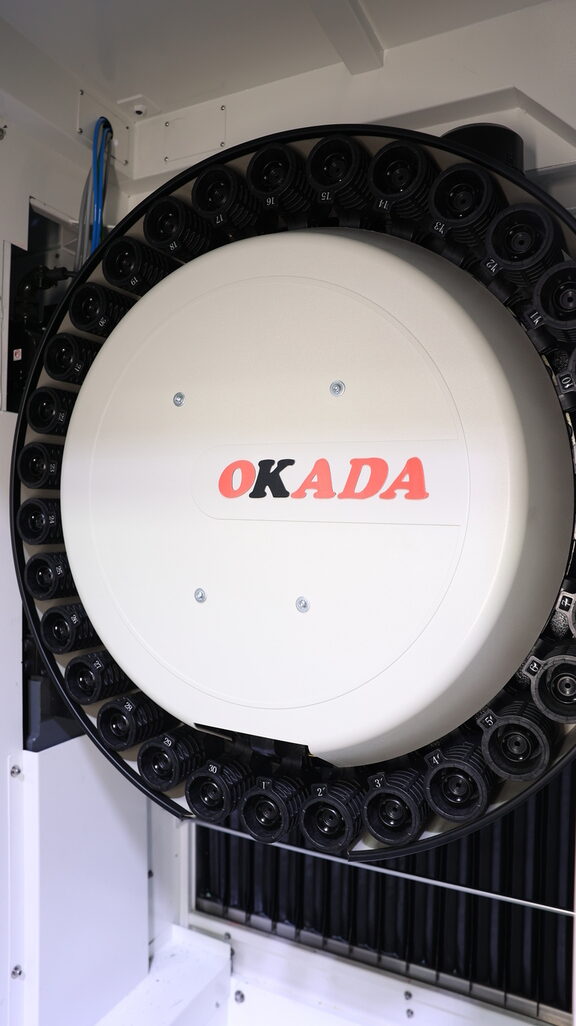

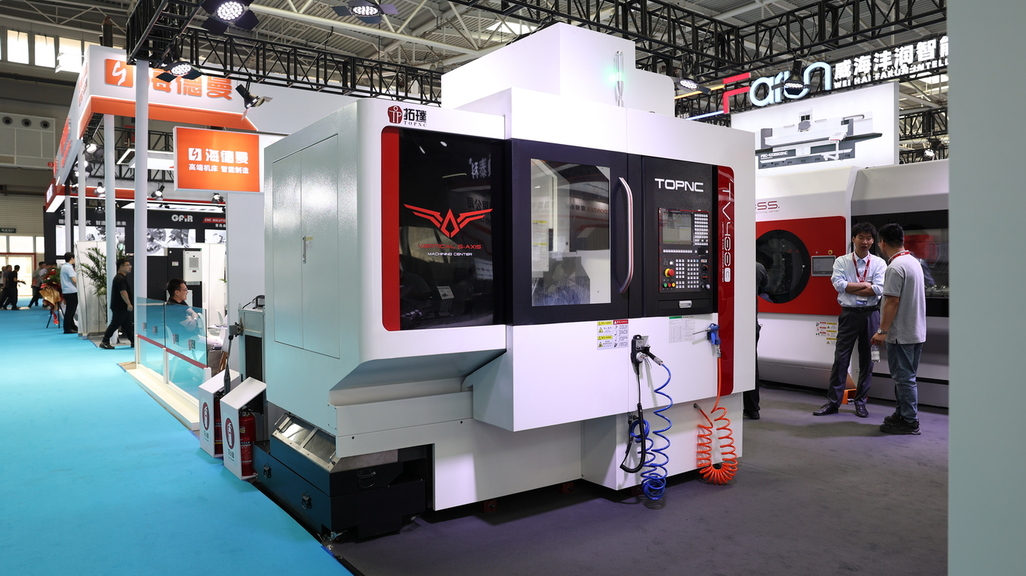

This gallery presents a mixed visual selection from the TV-C Series, including machine views, machining details, component examples and application-related impressions. The images are not separated by model type and provide a broader impression of the series as a whole.
