Kunpeng Family

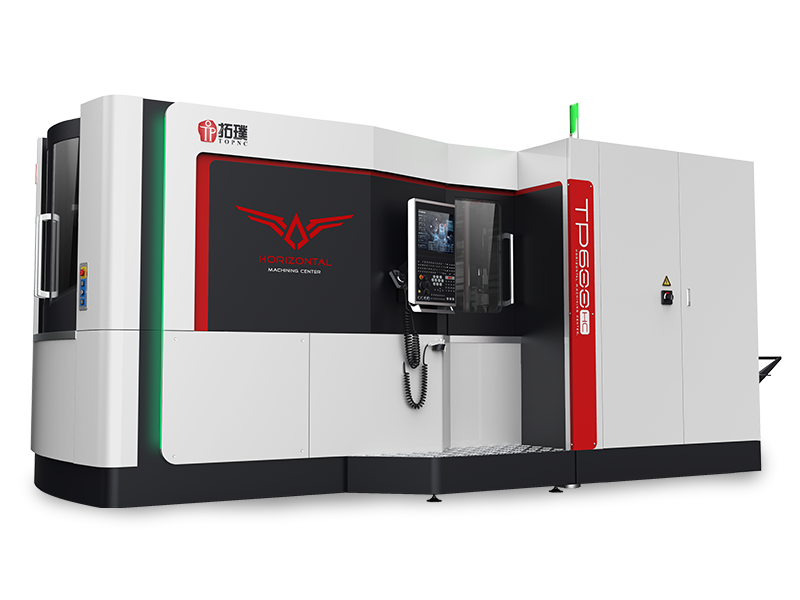

TP600 Series
5-Axis Horizontal Machining Centers for high-precision industrial manufacturing.
The TP600 Series combines horizontal machining, high-rigidity machine design and stable thermal performance in one compact platform. With 5-axis and 4-axis configurations, the series is designed for precise, efficient and reliable machining of complex industrial components.
TP600HC
TP600C
TP600H
Control Systems
Siemens and Heidenhain CNC control options.
TOPNC machines can be configured with Siemens or Heidenhain control systems, depending on machine type, application requirements and customer production standards.
01
Siemens CNC
Reliable control technology for stable operation and demanding production environments.
02
Heidenhain CNC
Precision-focused control for complex milling, contours and high-accuracy workflows.
03
Configured by Application
Control system selection depends on machine type, process and customer requirements.
Model Range
Three TP600 configurations for high-precision horizontal machining.
The TP600 Series offers 5-axis and 4-axis horizontal machining configurations for different automation, pallet handling and production requirements. Each model is designed to support stable machining, efficient workflow and reliable long-term precision.
High-end configuration

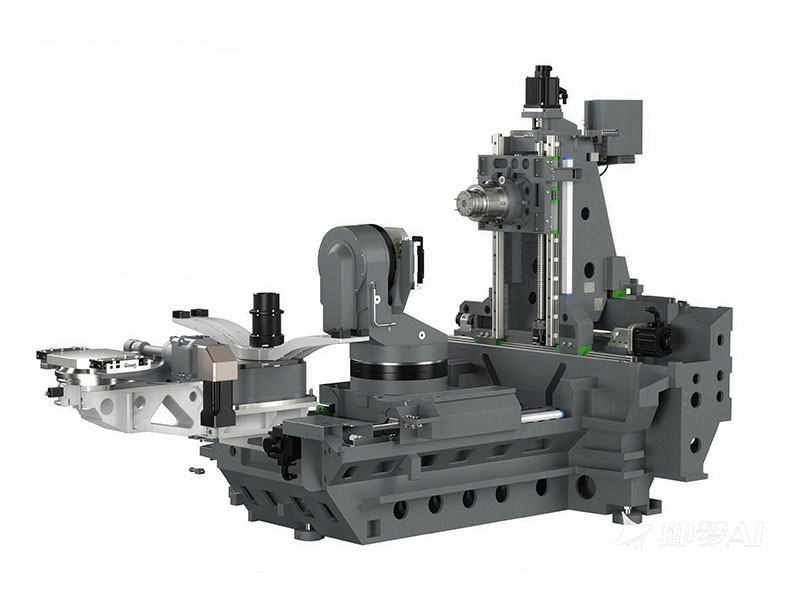

TP600HC
High-end 5-axis horizontal machining center with pallet changer for efficient machining and automated pallet exchange.
5-axis + APC
Configuration
800 / 730 / 700 mm
X/Y/Z-axis travel
14,000 rpm
Spindle speed
5-axis configuration

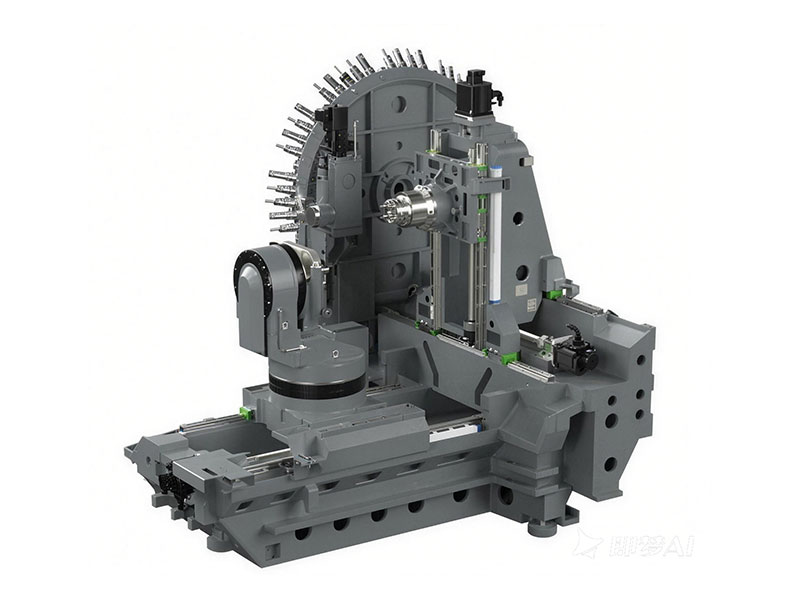

TP600C
High-end 5-axis horizontal machining center with single pallet concept for precise and flexible machining tasks.
5-axis
Configuration
800 / 730 / 700 mm
X/Y/Z-axis travel
14,000 rpm
Spindle speed
4-axis configuration
TP600H
Versatile 4-axis horizontal machining center with pallet changer for stable, efficient machining across a wide range of applications.
4-axis + APC
Configuration
800 / 730 / 800 mm
X/Y/Z-axis travel
60 pockets
Tool magazine
01
High Rigidity

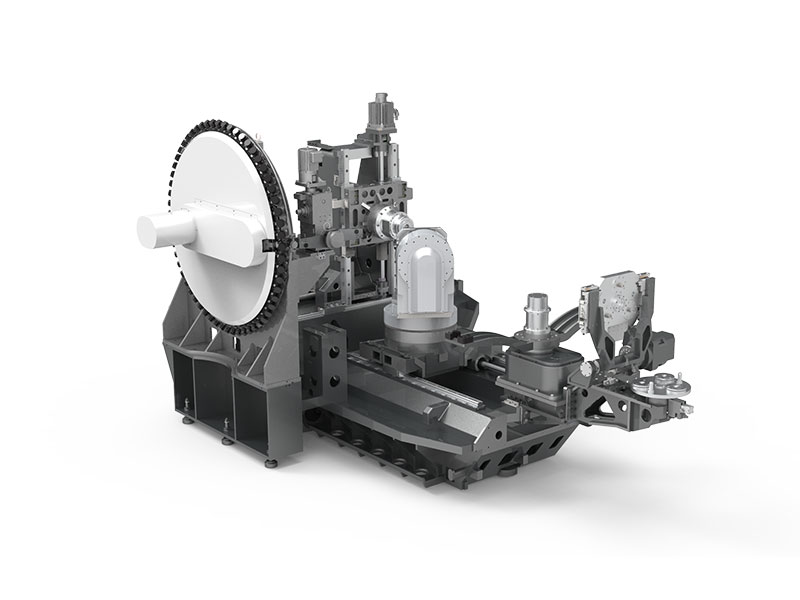

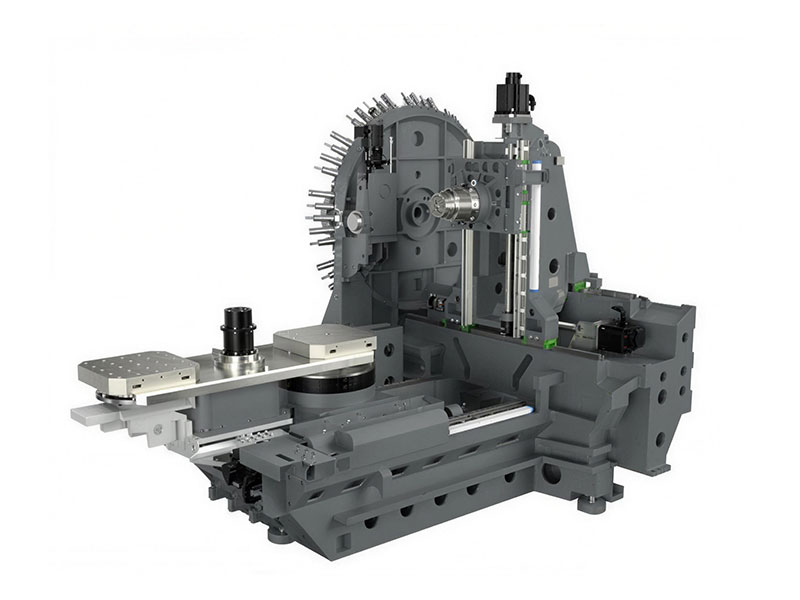

A monolithic machine bed with three-point support and a symmetrical structure provides high rigidity and stable thermal behavior during demanding machining processes.
02
Stable Precision
Closed-loop control, cooled ball screws and high-precision rotary table technology support reliable positioning accuracy and repeatability.
03
Efficient Machining
High-speed spindle performance, rapid axis feed and pallet handling options help improve machining efficiency and machine utilization.
04
Flexible Applications
The TP600 Series supports applications in automotive, construction machinery, aerospace, aviation and general manufacturing.
Technical Data
Technical comparison across the TP600 Series.
The table below compares the key technical data of the TP600HC, TP600C and TP600H. It provides a clear basis for evaluating the right configuration according to axis travel, pallet concept, machining scope and production requirements.
| Parameter | TP600HC | TP600C | TP600H |
|---|---|---|---|
| X-axis travel | 800 mm | 800 mm | 800 mm |
| Y-axis travel | 730 mm | 730 mm | 730 mm |
| Z-axis travel | 700 mm | 700 mm | 800 mm |
| Distance from spindle face to B-axis center | 200-900 mm | 200-900 mm | 100-900 mm |
| Min. distance from spindle face to pallet surface | 290 mm | 290 mm | — |
| B-axis travel | 290° (-110°~+180°) | 290° (-110°~+180°) | N × 360° |
| C-axis travel | N × 360° | N × 360° | — |
| Table size | 400 × 400 mm | 400 × 400 mm | 500 × 500 mm |
| Max. workpiece size | Ø630 × 490 mm (550 across flats) | Ø630 × 490 mm | Ø800 × 810 mm |
| Max. pallet load | 320 kg | 320 kg | 500 kg |
| Positioning accuracy (X-, Y-, Z-axes) | 8 μm | 8 μm | 8 μm |
| Repeatability (X-, Y-, Z-axes) | 4 μm | 4 μm | 4 μm |
| Positioning accuracy (B- and C-axes) | 12″ | 12″ | 12″ |
| Repeatability (B- and C-axes) | 6″ | 6″ | 6″ |
| Max. speed of rotary table (B- and C-axes) | 60 rpm | 60 rpm | 60 rpm |
| Max. rapid feed (X-, Y-, Z-axes) | 60 m/min | 60 m/min | 60 m/min |
| Cutting feed speed (X-, Y-, Z-axes) | 1-50,000 mm/min | 1-50,000 mm/min | 1-50,000 mm/min |
| Axis feed acceleration/deceleration | 0.8 g | 0.8 g | 0.8 g |
| Tool holder | HSK-A63 | HSK-A63 | HSK-A63 |
| Tool magazine capacity | 60 | 60 | 60 |
| Max. tool diameter (with adjacent tools) | Ø85 mm | Ø85 mm | Ø85 mm |
| Max. tool diameter (without adjacent tools) | Ø170 mm | Ø170 mm | Ø170 mm |
| Max. tool weight | 8 kg | 8 kg | 8 kg |
| Max. tool length | 450 mm | 450 mm | 450 mm |
| Max. speed of spindle | 14,000 rpm (optional 20,000 rpm) | 14,000 rpm (optional 20,000 rpm) | 14,000 rpm (optional 20,000 rpm) |
| Spindle taper | HSK-A63 | HSK-A63 | HSK-A63 |
| Motor in spindle (S1/S6) | 22/33 kW | 22/33 kW | 22/33 kW |
| Motor torque in spindle (S1/S6) | 120/180 Nm | 120/180 Nm | 120/180 Nm |
| L × W × H (including chip conveyor) | 5400 × 2950 × 2800 mm | 4400 × 2950 × 2800 mm | 4670 × 2950 × 2800 mm |
| Gross weight | 14 t | 13 t | 13 t |
Download Brochure
Full TP600 Series brochure.
Download the official TP600 Series brochure with detailed technical data, machine concepts, configuration information and application insights for the horizontal machining center series.

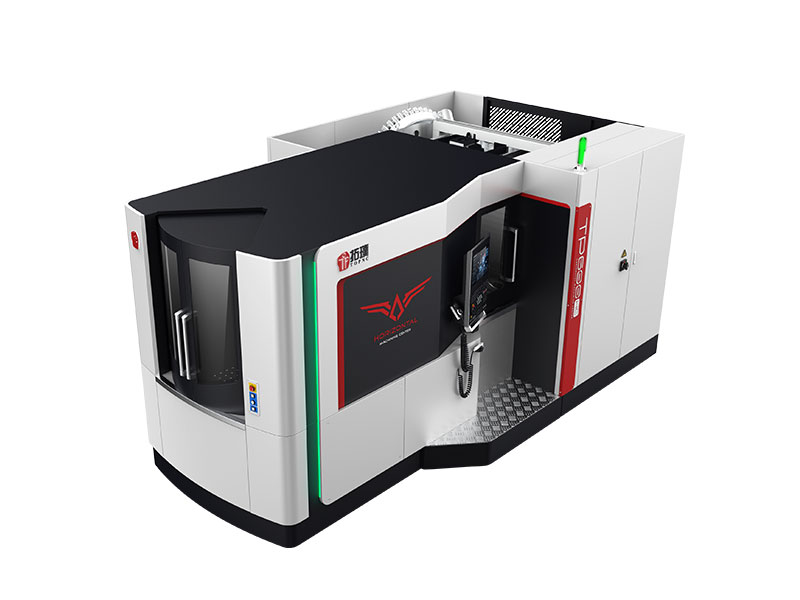

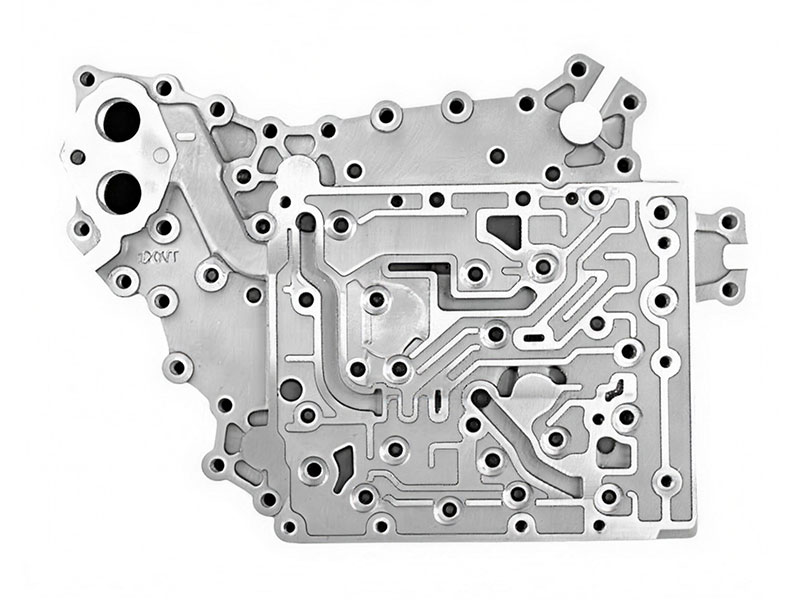

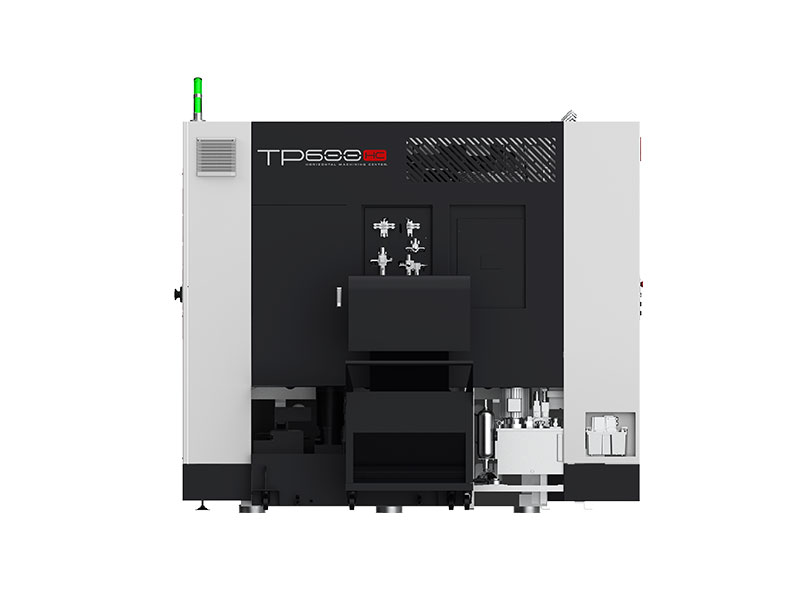

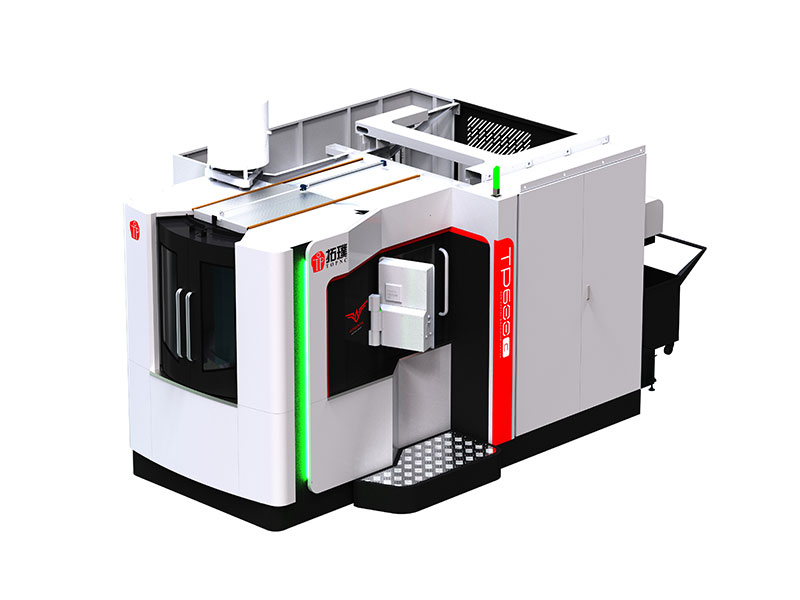

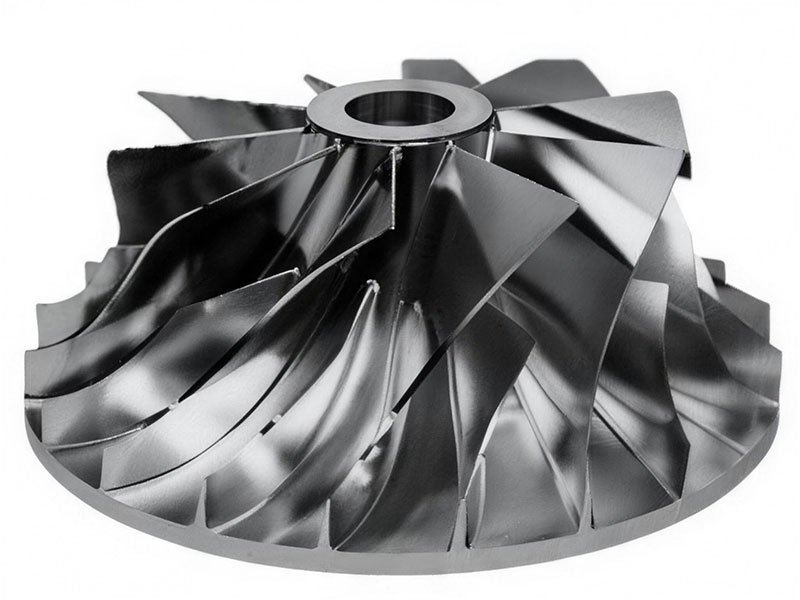

Photo Gallery
Impressions from the TP600 Series in different machining and product contexts.

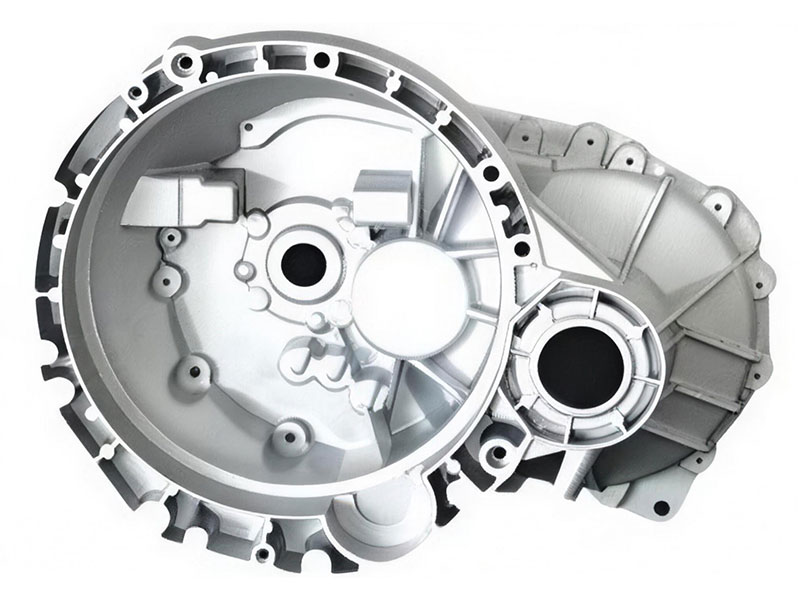

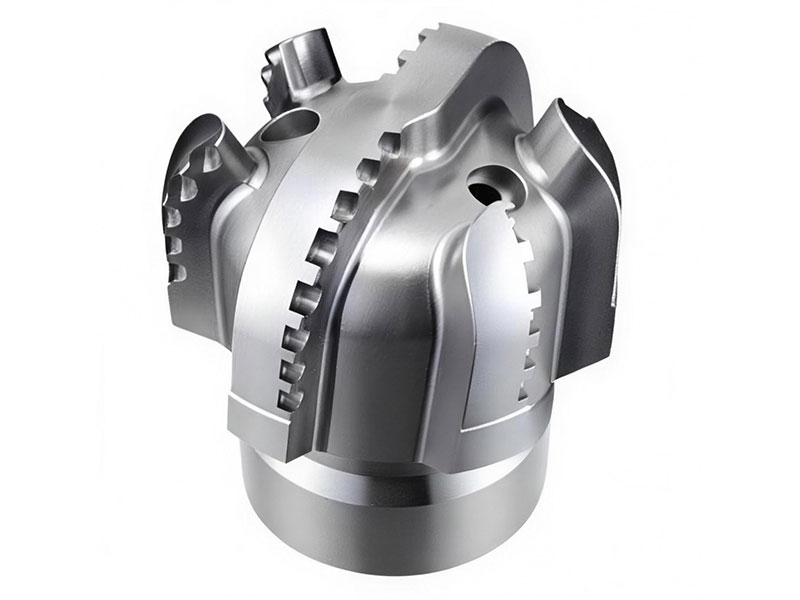

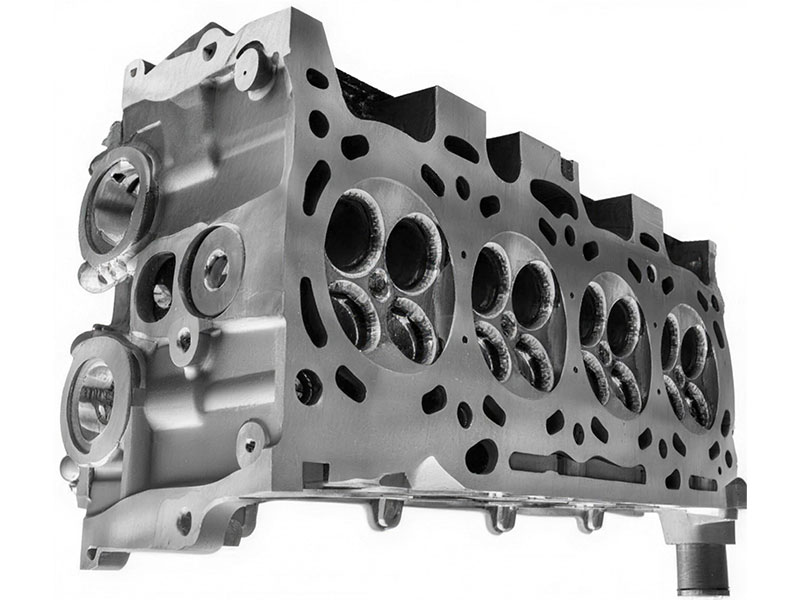

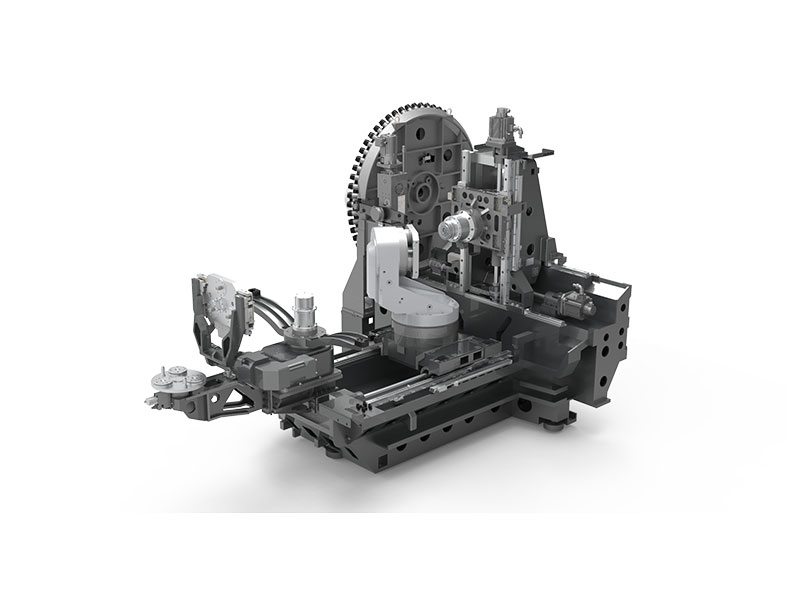

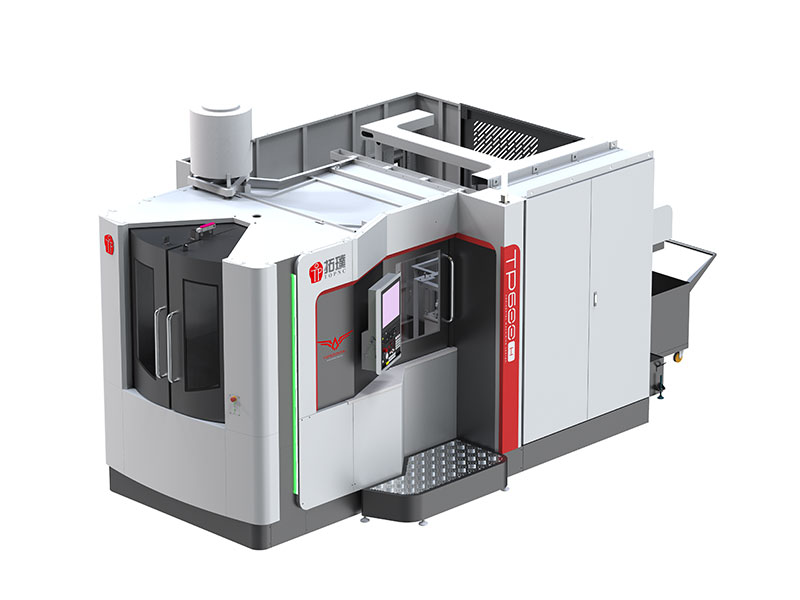

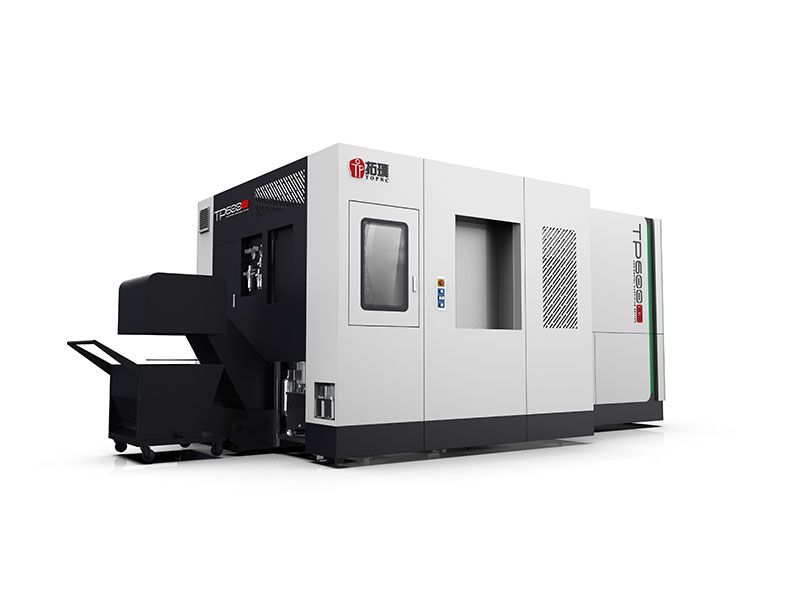

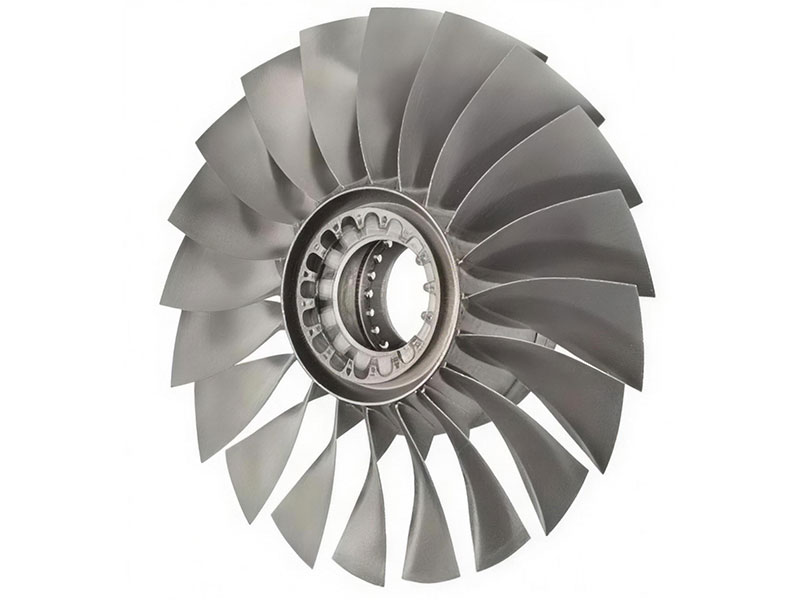

This gallery presents a mixed visual selection from the TP600 Series, including machine views, work areas, structural details and application-related impressions. The images are not separated by model type and provide a broader impression of the series as a whole.
